8.5" 5.56 NATO AR-15 Upper Assembly – 7" M-LOK, Gen 2 Micro SOCOM Shroud
| Brand: | Moriarti Armaments |
| Product Code: | MAR-556-7-SOCOM-MLOK |
| Availability: | In Stock |
-
$269.95
- $399.95
8.5" 5.56 Upper: Specs & Features

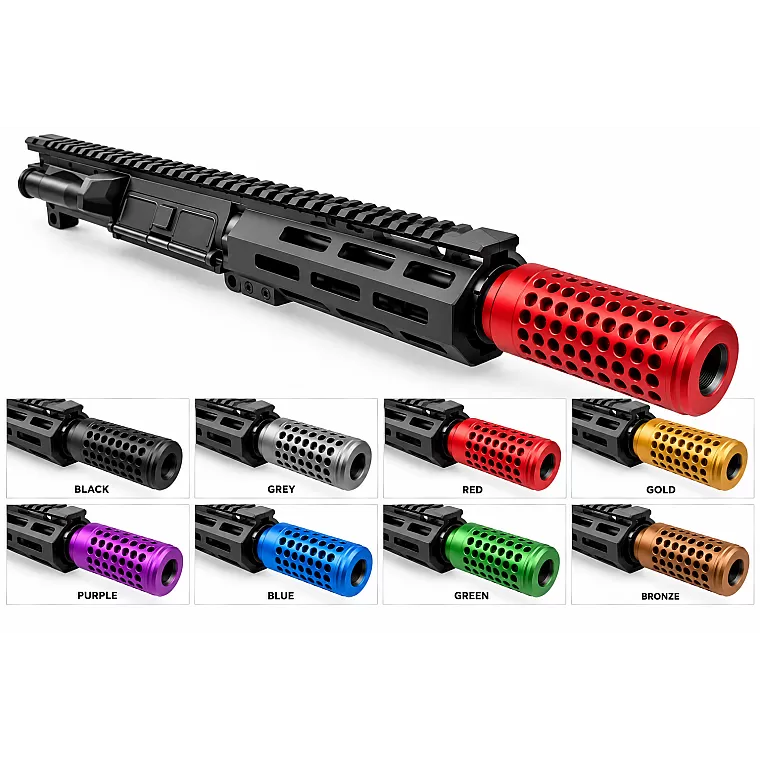

The Moriarti 8.5" 5.56 NATO AR-15 Upper Assembly features a 7" slim free-float M-LOK handguard and a Gen 2 Micro SOCOM-style barrel shroud with selectable anodized color finishes.
This updated configuration features an 8.5" 4150 chrome moly steel barrel with Nitro-Met treatment, a 1:7 right-hand twist, and a .750 low-profile steel gas block. The black A3 flat-top upper receiver is manufactured from forged 7075-T6 aluminum and includes an installed forward assist, dust cover, and M4 feed ramps.
The Gen 2 Micro SOCOM-style accessory features a perforated T6 aluminum body and a steel threaded adapter.
Choose from Black, Grey, Red, Gold, Purple, Blue, or Green to customize the appearance of the upper assembly.
Key Features
8.5" 5.56 NATO Barrel: 4150 chrome moly steel with Nitro-Met treatment.
1:7 RH Barrel Twist: Right-hand rifling.
7" Slim M-LOK Handguard: Free-float aluminum design with black hardcoat-anodized finish.
Gen 2 Micro SOCOM-Style Shroud: Perforated T6 aluminum barrel shroud with steel threaded adapter.
Seven Shroud Colors: Black, Grey, Red, Gold, Purple, Blue, and Green.
.750 Low-Profile Steel Gas Block: Included in the upper assembly.
Forged A3 Upper Receiver: 7075-T6 aluminum with black hardcoat anodizing.
Forward Assist and Dust Cover: Installed.
M4 Feed Ramps: Included.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Moriarti Armaments |
| Platform | AR-15 |
| Product Type | Upper Assembly |
| Chamber | 5.56 NATO |
| Compatible Ammunition | .223 Remington |
| Barrel Length | 8.5" |
| Barrel Material | 4150 Chrome Moly Steel |
| Barrel Treatment | Nitro-Met |
| Barrel Twist | 1:7 RH |
| Gas System | Carbine Length |
| Gas Block | .750 Low-Profile Steel |
| Barrel Threads | 1/2x28 |
| Handguard | 7" Slim Free-Float M-LOK |
| Handguard Material | Aluminum |
| Handguard Finish | Black Hardcoat Anodized |
| Upper Receiver | A3 Flat-Top, Forged 7075-T6 Aluminum |
| Receiver Finish | Black Hardcoat Anodized |
| Forward Assist | Installed |
| Dust Cover | Installed |
| Feed Ramps | M4 |
| Muzzle Accessory | Gen 2 Micro SOCOM-Style Barrel Shroud |
| Shroud Material | T6 Aluminum |
| Shroud Adapter | Steel |
| Shroud Length | 3.5" |
| Shroud Outside Diameter | 1.5" |
| Shroud Weight | 4.3 oz |
| Shroud Barrel Coverage | Approximately 2.5" |
| Shroud Finish | Anodized |
| Shroud Colors | Black, Grey, Red, Gold, Purple, Blue, Green |
| Bolt Carrier Group | Not Included |
| Charging Handle | Not Included |
| Lower Receiver | Not Included |
Package Includes
Assembled 8.5" 5.56 NATO upper assembly
7" slim M-LOK handguard
Installed gas system with .750 steel gas block
Gen 2 Micro SOCOM-style barrel shroud in selected color
Steel threaded shroud adapter
Forged A3 upper receiver with forward assist and dust cover
Bolt carrier group, charging handle, and lower receiver are not included.
Frequently Asked Questions
What barrel length does this upper feature?
This updated configuration features an 8.5" barrel chambered in 5.56 NATO.
Is the SOCOM-style accessory a sound suppressor?
No. It is a decorative barrel shroud and does not provide sound suppression.
What handguard is included?
A 7" slim free-float aluminum M-LOK handguard with a black anodized finish.
What SOCOM shroud colors are available?
Black, Grey, Red, Gold, Purple, Blue, and Green.
Does this upper include a bolt carrier group or charging handle?
No. Both are excluded from the standard configuration.
Product Image Notice
Images may not be the exact representation of the product.
FAQ
Will this upper fit my AR-15 lower?
Yes. It fits any standard mil-spec AR-15 lower receiver and uses a standard 5.56 bolt carrier group and STANAG/AR-15 magazines.
Can I shoot both 5.56 NATO and .223 Remington?
Yes. A 5.56 NATO or .223 Wylde chamber safely fires both 5.56 NATO and .223 Remington ammunition.
Is a bolt carrier group included?
Yes. This upper ships with a bolt carrier group, so it is ready to install on a compatible AR-15 lower.
What twist rate does it use?
A 1:7 twist, the mil-spec rate that stabilizes 55 gr through heavy 77 gr loads.
What does the shroud do?
It slips over the muzzle device and pushes blast forward, away from the shooter.
