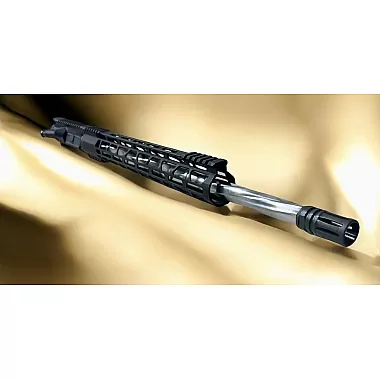

AR-15 6mm ARC 20" Hexagon Fluted Stainless Steel Upper Assembly – 15" M-LOK

6mm ARC Upper: Specs & Features

The Moriarti AR-15 6mm ARC 20" Hexagon Fluted Stainless Steel Upper Assembly combines match-grade barrel construction with a precision-oriented configuration for the AR-15 platform. Chambered in 6mm ARC, this upper features a 20-inch, hand-lapped 416R stainless steel barrel with distinctive hexagon fluting, a medium profile, and a 1:7.5 twist rate.

Designed for sporting and precision target applications, the 6mm ARC cartridge offers an efficient combination of velocity, ballistic performance, and compatibility with the AR-15 platform. The match-grade stainless steel barrel features a natural stainless finish, M4 feed ramps, and 5/8x24 muzzle threading.

The rifle-length gas system incorporates a .750-inch low-profile steel gas block with a nitride finish and a stainless steel rifle-length gas tube.

The upper assembly features a forged 7075-T6 aluminum A3 flat-top receiver with a black hardcoat anodized finish, installed forward assist, and dust cover. A 15-inch free-floating M-LOK handguard, constructed from aircraft-quality aluminum with a black hardcoat anodized finish, provides a continuous top Picatinny rail and accessory mounting positions.

The combination of the hexagon-fluted stainless barrel and black M-LOK handguard creates a distinctive appearance while maintaining the functionality of a full-length AR-15 upper assembly.

Bolt carrier group and charging handle are not included. Both are available as optional selections.

Key Features

• 6mm ARC chambering

• 20" match-grade 416R stainless steel barrel

• Natural stainless steel barrel finish

• Distinctive hexagon barrel fluting

• Medium barrel profile

• Hand-lapped barrel

• 1:7.5 barrel twist rate

• Rifle-length gas system

• .750" low-profile steel gas block with nitride finish

• Stainless steel rifle-length gas tube

• 5/8x24 muzzle threads

• M4 feed ramps

• Forged 7075-T6 aluminum A3 flat-top upper receiver

• Black hardcoat anodized receiver finish

• Installed forward assist and dust cover

• 15" free-floating M-LOK handguard

• Aircraft-quality aluminum handguard construction

• Continuous top Picatinny rail

• Optional BCG and charging handle

• Compatible with mil-spec AR-15 lower receivers

Specifications

Package Includes

• Assembled Moriarti AR-15 6mm ARC 20" upper receiver assembly

• Installed 20" hexagon-fluted 416R stainless steel barrel

• Forged 7075-T6 A3 flat-top upper receiver

• Installed forward assist and dust cover

• Installed 15" free-floating M-LOK handguard

• Rifle-length stainless steel gas tube

• .750" low-profile steel gas block

Not Included Unless Selected: Bolt carrier group and charging handle.

FAQ

What barrel does this 6mm ARC upper feature?

A 20-inch, hand-lapped, match-grade 416R stainless steel barrel with hexagon fluting, a medium profile, and 1:7.5 twist rate.

Does the barrel have a nitride finish?

No. The barrel features a natural stainless steel finish. The steel gas block has a nitride finish.

Will this upper fit a standard AR-15 lower receiver?

The upper is designed for compatible mil-spec AR-15-pattern lower receivers.

What bolt carrier group and magazines are required?

A compatible 6mm ARC / 6.5 Grendel-type bolt and 6mm ARC-compatible magazines are required. A standard 5.56 NATO bolt is not compatible.

What gas system does this upper use?

A rifle-length gas system with a .750-inch low-profile steel gas block and stainless steel gas tube.

What handguard is installed?

A 15-inch free-floating aluminum M-LOK handguard with a black hardcoat anodized finish and continuous top Picatinny rail.

Are the bolt carrier group and charging handle included?

No. Both components are available as optional selections.

Product Image Notice

Images may not be the exact representation of the product.
